Product Detail;
1) Model No: WHFS-18” (Led Multi Color Number Module )
Size: 453mm x 254mm 18inch
2) Led Chip: Epistar (Made in TaiWan)
3) KingLight Led SMD full clolor <Red,Green,Yellow,Blue,Cyan,White,Pink >
4) Led Quality : 378pcs Segment weight : 788g
5) Operating Voltage : 12V DC Operating Current: 115mA
6) Brightness : 4000mcd ( Red/Blue) Brightness : 8000mcd (White Color )
7) Brightness : 5000mcd ( Green Color )
8) Brightness : 6000mcd (Yellow/Pink/Cyan Color)
9) Horizontal Visual Angle: 90°c Vertical Visual angle : 110°c
Product Description ;
1) Usage: The display segment is sealed with injection molding, using the Sealed silicone treatment, It can reach IP65 outdoor Waterproof grade.
2) It can be made of Led gas price sign 8.888 /88.88/888.8/8.88 9/10 /8.88 9 etc.and
Led time and temp sign 88:88 /88 0C /Led count down/up sign,Led scoreboard sign
Led exchagne rate sign,Led parking sign etc.

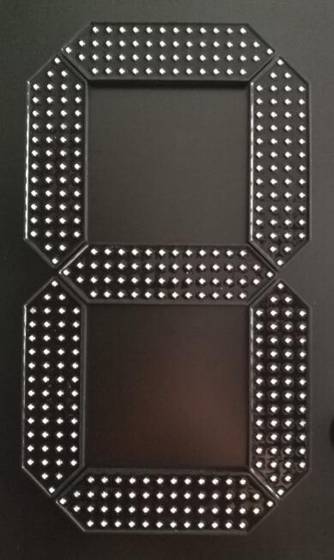

3) Each digit “8” is made of Led 7 segments <LED PCB Board <diamond > + Led Lamps+
A.B Silicone glue + Led Waterproof Plastic cover <Diamond > + Cable Connector
3) Using high light and wide sight LED lamp to display, which keep clear display effectively
Even through under direct sunlight.
4) All materials are passed high and low temp test, the products can operate steadily between -30°c-75°c
5) Once led lamps of segment is dead, the display segment can be replaced independently and easy maintain.
6) We have complete sizes to satisfy most application requested and we can do other measurement made to order.
7) Current Standard size : 6inch /8inch/10inch/12inch/15inch/18inch etc.
8) Customized sizes will be welcomed all the time.
Selling Point：each Led segment of LED SMD lamp’s color can be changed Red,Green,
Yellow,Blue,Cyan,White,Pink by Remote Control,but also it can be changed Auto in 5 sec.
